SN74AVCH1T45DBVT

IC TRNSLTR BIDIRECTIONAL SOT23-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74AVCH1T45DBVT

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74AVCH1T45DBVT Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ET1F ET1R	SN74AVCH1T45DBVT	TI	6	0	Single-Bit Dual-Supply Bus Transceiver with Configurable Voltage Translation and 3-State Outputs

Operating Temperature	-40°C ~ 85°C (TA)
Voltage - VCCA	1.2 V ~ 3.6 V
Data Rate	500Mbps
Output Signal	-
Input Signal	-
Number of Circuits	1
Channels per Circuit	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Channel Type	Bidirectional
Voltage - VCCB	1.2 V ~ 3.6 V
Mounting Type	Surface Mount

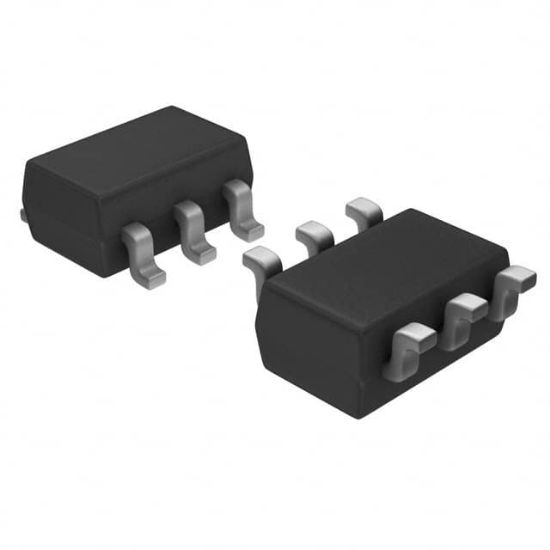

Supplier Device Package	SOT-23-6
Translator Type	Voltage Level
Features	-
RoHS	RoHS
Output Type	Tri-State, Non-Inverted
