SN74AUP1G14YFPR

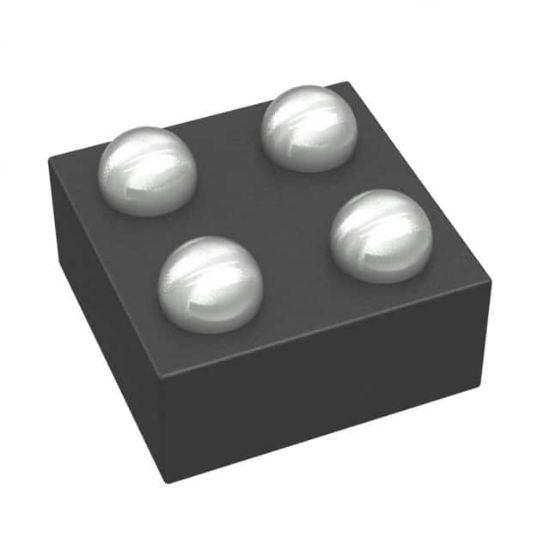

IC INVERT SCHMITT 1CH 1IN 4DSBGA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: SN74AUP1G14YFPR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN74AUP1G14YFPR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
HF N	SN74AUP1G14YFPR	TI	4	0	Low-Power Single Schmitt-Trigger Inverter
HF+N	SN74AUP1G14YFPR		DSBGA-6	6	2N5484
___HF_	SN74AUP1G14YFPR		DSBGA-6	0	Low-Power Single Schmitt-Trigger Inverter

Voltage - Supply	0.8V ~ 3.6V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	6.2ns @ 3.3V, 30pF
Mounting Type	Surface Mount
Supplier Device Package	4-DSBGA
Logic Level - High	0.6V ~ 2.29V
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Current - Quiescent (Max)	500 nA
Logic Level - Low	0.1V ~ 0.88V
Number of Inputs	1
Operating Temperature	-40°C ~ 85°C
Features	Schmitt Trigger
RoHS	RoHS
Current - Output High, Low	4mA, 4mA
