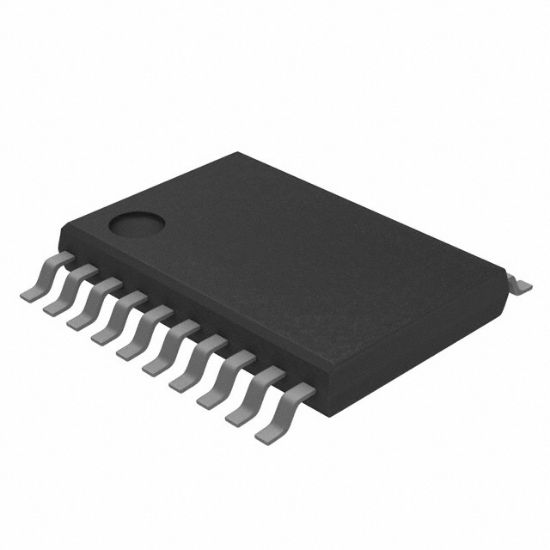

SN65C3222PW

IC TRANSCEIVER FULL 2/2 20TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: SN65C3222PW

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SN65C3222PW Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
CB3222	SN65C3222PW		TSSOP-20	20	3-V To 5.5-V Multichannel RS-232 Compatible Line Driver/Receiver

Number of Drivers/Receivers	2/2
Operating Temperature	-40°C ~ 85°C
Data Rate	1Mbps
Type	Transceiver
Duplex	Full
RoHS	RoHS
Receiver Hysteresis	300 mV
Voltage - Supply	3V ~ 5.5V
Supplier Device Package	20-TSSOP
Package	Bulk,Tube
Mounting Type	Surface Mount
Protocol	RS232
