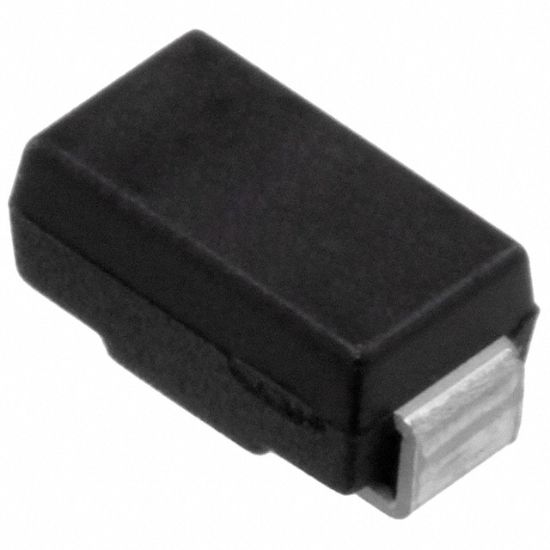

SJPD-D5V

DIODE GEN PURP 500V 1A SJP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Sanken

SKU: SJPD-D5V

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SJPD-D5V Description

Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Supplier Device Package	SJP
Diode Type	Standard
Operating Temperature - Junction	-40°C ~ 150°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	1.4 V @ 1 A
Current - Reverse Leakage @ Vr	10 μA @ 500 V
Reverse Recovery Time (trr)	40 ns
Voltage - DC Reverse (Vr) (Max)	500 V
Current - Average Rectified (Io)	1A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
