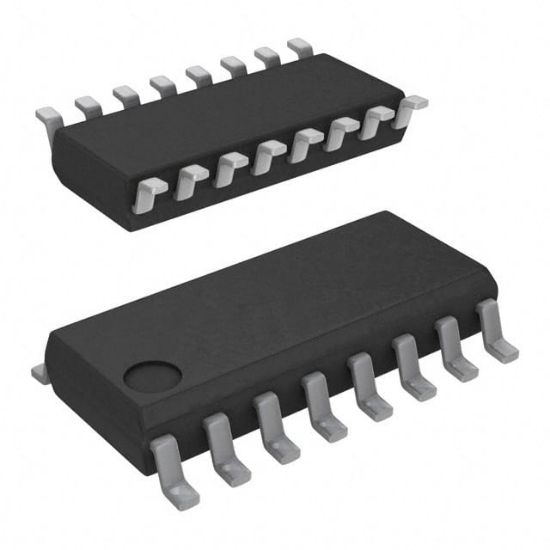

SI82394CB4-IS1R

DGTL ISO 2.5KV GATE DVR 16SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: Skyworks Solutions Inc.

SKU: SI82394CB4-IS1R

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SI82394CB4-IS1R Description

Operating Temperature	-40°C ~ 125°C
Rise / Fall Time (Typ)	12ns, 12ns (Max)
Voltage - Output Supply	12.8V ~ 24V
Mounting Type	Surface Mount
Technology	Capacitive Coupling
Common Mode Transient Immunity (Min)	35kV/μs
Number of Channels	2
Pulse Width Distortion (Max)	5.6ns
Package	Tape & Reel (TR)
Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Approval Agency	CQC, CSA, UR, VDE
Propagation Delay tpLH / tpHL (Max)	135ns, 95ns
Supplier Device Package	16-SOIC
Current - DC Forward (If) (Max)	-
Voltage - Isolation	2500Vrms
RoHS	RoHS
Current - Output High, Low	2A, 4A
