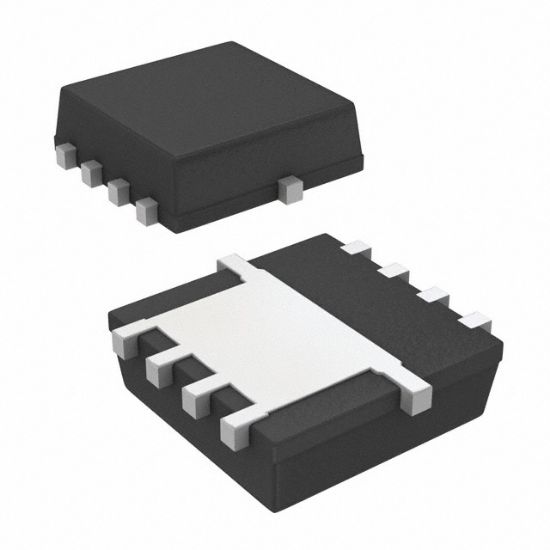

SI7405BDN-T1-GE3

MOSFET P-CH 12V 16A PPAK1212-8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay Siliconix

SKU: SI7405BDN-T1-GE3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SI7405BDN-T1-GE3 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	16A (Tc)
Rds On (Max) @ Id, Vgs	13mOhm @ 13.5A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	3.6W (Ta), 33W (Tc)
Drain to Source Voltage (Vdss)	12 V
Vgs (Max)	±8V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	115 nC @ 8 V
Supplier Device Package	PowerPAK? 1212-8
Input Capacitance (Ciss) (Max) @ Vds	3500 pF @ 6 V
RoHS	RoHS
