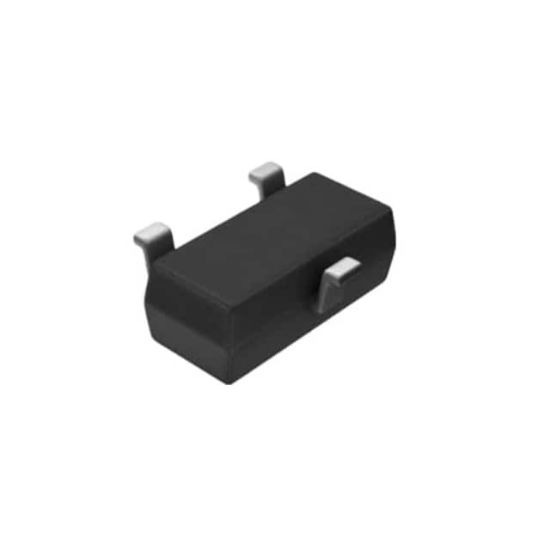

SI2301S-2.3A

MOSFET SOT-23 P Channel 20V

1 review(s) | Add your review

Availability: In stock

Manufacturer: NextGen Components

SKU: SI2301S-2.3A

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SI2301S-2.3A Description

Operating Temperature	-55°C ~ 150°C
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Rds On (Max) @ Id, Vgs	90mOhm @ 3A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	3.3V, 4.5V
Package	Tape & Reel (TR)
Power Dissipation (Max)	225mW (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±10V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	6.6 nC @ 10 V
Supplier Device Package	SOT-23
Input Capacitance (Ciss) (Max) @ Vds	330 pF @ 10 V
RoHS	RoHS
