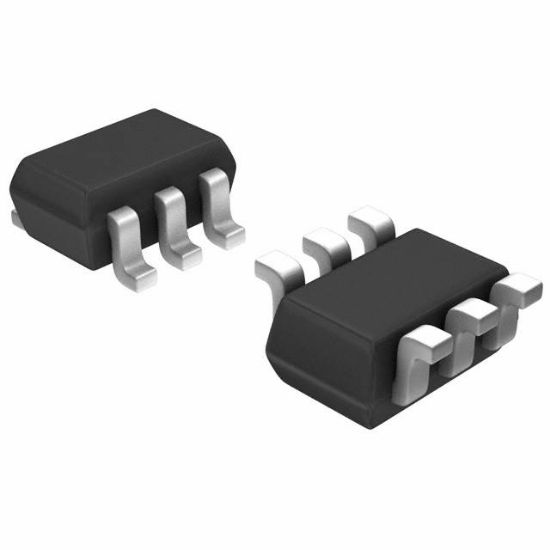

SI1403BDL-T1-BE3

MOSFET P-CH 20V 1.4A SC70-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay Siliconix

SKU: SI1403BDL-T1-BE3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SI1403BDL-T1-BE3 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	1.4A (Ta)
Rds On (Max) @ Id, Vgs	150mOhm @ 1.5A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	-
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	568mW (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±12V
Vgs(th) (Max) @ Id	1.3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	4.5 nC @ 4.5 V
Supplier Device Package	SC-70-6
Input Capacitance (Ciss) (Max) @ Vds	-
RoHS	RoHS
