SI1023X-T1-E3

MOSFET 2P-CH 20V 0.37A SOT563F

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay Siliconix

SKU: SI1023X-T1-E3

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SI1023X-T1-E3 Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount

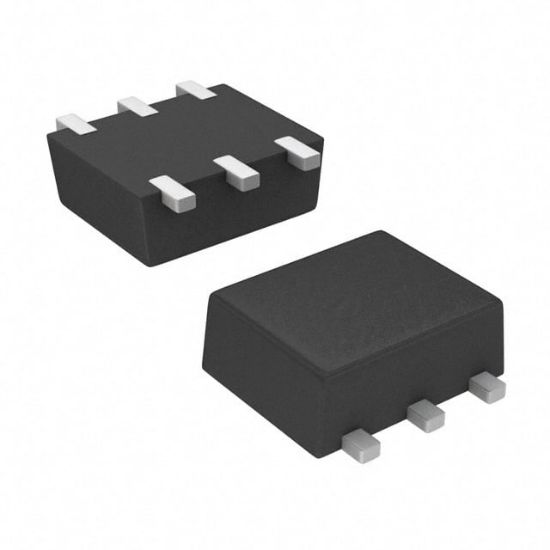

Supplier Device Package	SC-89 (SOT-563F)
Current - Continuous Drain (Id) @ 25°C	370mA
Rds On (Max) @ Id, Vgs	1.2Ohm @ 350mA, 4.5V
FET Type	2 P-Channel (Dual)
Power - Max	250mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	20V
Vgs(th) (Max) @ Id	450mV @ 250μA (Min)
Gate Charge (Qg) (Max) @ Vgs	1.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
RoHS	RoHS
