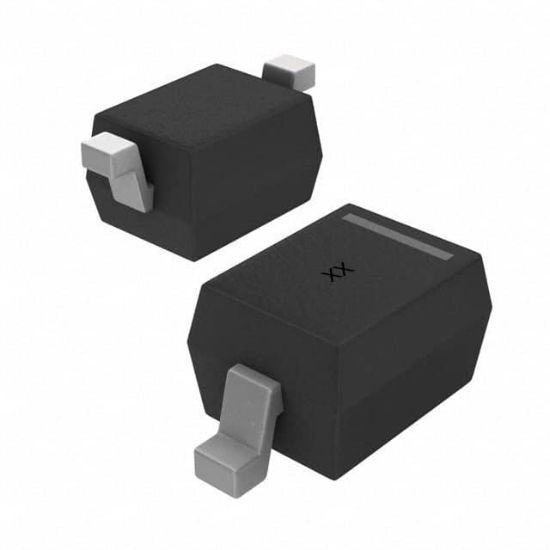

SD101BWS-TP

DIODE SCHOTTKY 50V SOD323

1 review(s) | Add your review

Availability: In stock

Manufacturer: Micro Commercial Co

SKU: SD101BWS-TP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SD101BWS-TP Description

Capacitance @ Vr, F	2.1pF @ 0V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	SOD-323
Diode Type	Schottky
Operating Temperature - Junction	-55°C ~ 125°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	950 mV @ 15 mA
Current - Reverse Leakage @ Vr	200 nA @ 40 V
Reverse Recovery Time (trr)	1 ns
Voltage - DC Reverse (Vr) (Max)	50 V
Current - Average Rectified (Io)	-
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
