SD101B-TAP

DIODE SCHOTTKY 50V DO35

1 review(s) | Add your review

Availability: In stock

Manufacturer: Vishay General Semiconductor - Diodes Division

SKU: SD101B-TAP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SD101B-TAP Description

Capacitance @ Vr, F	2.1pF @ 0V, 1MHz
Mounting Type	Through Hole

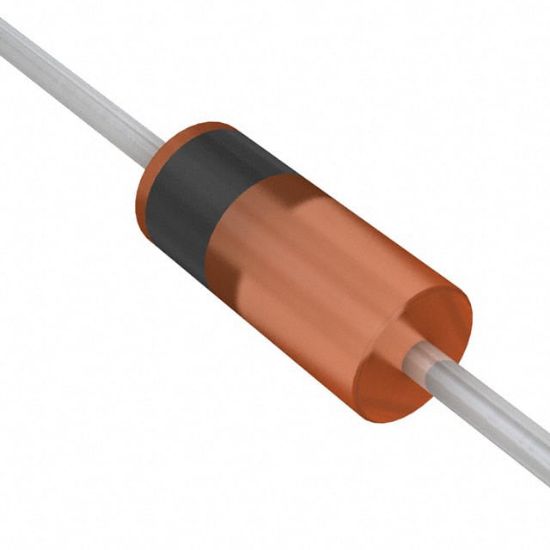

Supplier Device Package	DO-35 (DO-204AH)
Diode Type	Schottky
Operating Temperature - Junction	125°C (Max)
Package	Tape & Box (TB)
Voltage - Forward (Vf) (Max) @ If	950 mV @ 15 mA
Current - Reverse Leakage @ Vr	200 nA @ 40 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	50 V
Current - Average Rectified (Io)	30mA
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
