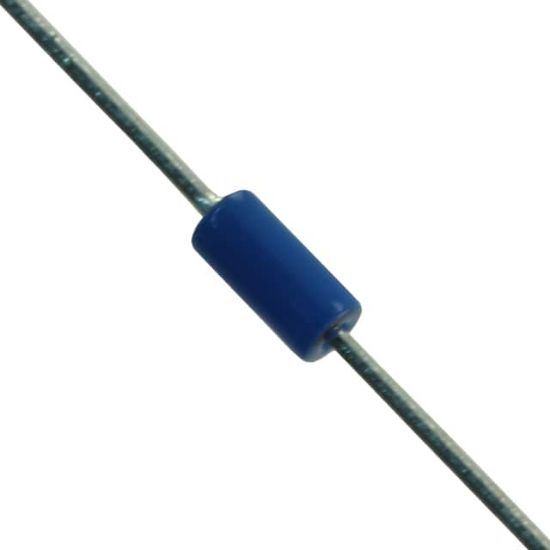

SD101A-TP

DIODE SCHOTTKY 60V 15MA DO35

1 review(s) | Add your review

Availability: In stock

Manufacturer: Micro Commercial Co

SKU: SD101A-TP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SD101A-TP Description

Capacitance @ Vr, F	-
Mounting Type	Through Hole
Supplier Device Package	DO-35
Diode Type	Schottky
Operating Temperature - Junction	125°C (Max)
Package	Tape & Reel (TR),Cut Tape (CT)
Voltage - Forward (Vf) (Max) @ If	1 V @ 15 mA
Current - Reverse Leakage @ Vr	200 nA @ 50 V
Reverse Recovery Time (trr)	1 ns
Voltage - DC Reverse (Vr) (Max)	60 V
Current - Average Rectified (Io)	15mA (DC)
RoHS	RoHS
Speed	Small Signal =< 200mA (Io), Any Speed
