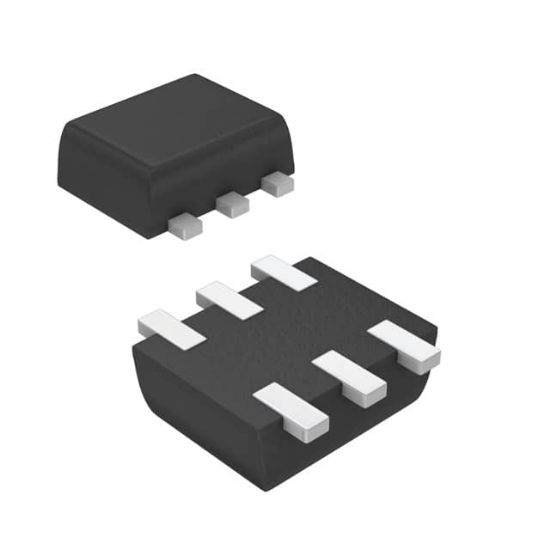

SBR1U30SV-7

DIODE SBR 30V 1A SOT563

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: SBR1U30SV-7

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SBR1U30SV-7 Description

Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Supplier Device Package	SOT-563
Diode Type	Super Barrier
Operating Temperature - Junction	-65°C ~ 150°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	510 mV @ 1 A
Current - Reverse Leakage @ Vr	150 μA @ 30 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	1A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
