SBR12A45SP5-13

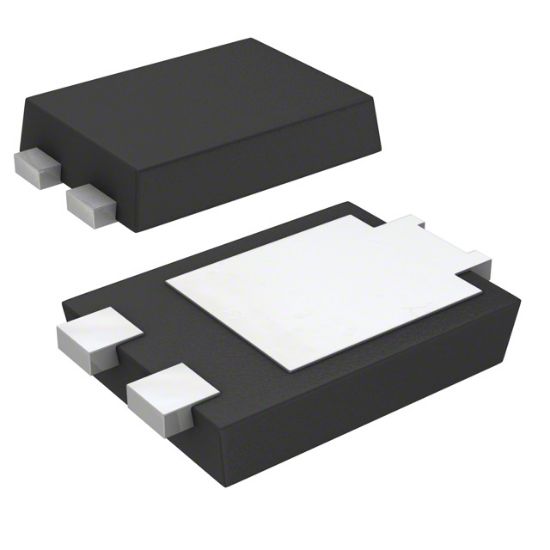

DIODE SBR 45V 12A POWERDI5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: SBR12A45SP5-13

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

SBR12A45SP5-13 Description

Capacitance @ Vr, F	1000pF @ 4V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	PowerDI? 5
Diode Type	Super Barrier
Operating Temperature - Junction	-65°C ~ 175°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	600 mV @ 12 A
Current - Reverse Leakage @ Vr	300 μA @ 45 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	45 V
Current - Average Rectified (Io)	12A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
