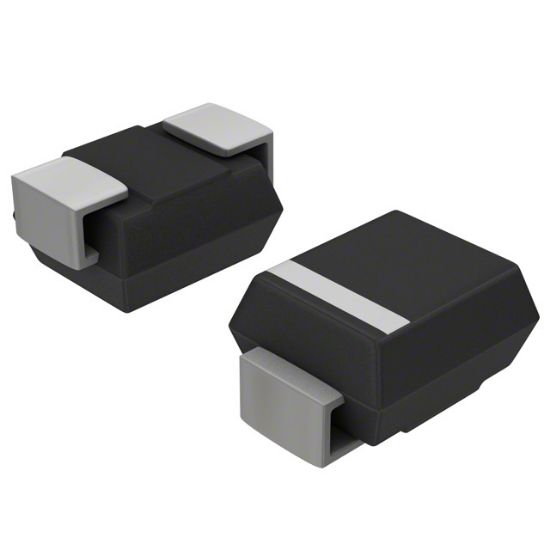

S3ABTR

DIODE GEN PURP 50V 3A SMB

1 review(s) | Add your review

Availability: In stock

Manufacturer: SMC Diode Solutions

SKU: S3ABTR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

S3ABTR Description

Capacitance @ Vr, F	60pF @ 4V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	SMB (DO-214AA)
Diode Type	Standard
Operating Temperature - Junction	-65°C ~ 150°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	1.2 V @ 3 A
Current - Reverse Leakage @ Vr	5 μA @ 50 V
Reverse Recovery Time (trr)	2.5 μs
Voltage - DC Reverse (Vr) (Max)	50 V
Current - Average Rectified (Io)	3A
RoHS	RoHS
Speed	Standard Recovery >500ns, > 200mA (Io)
