S2S1RP

SCR 200V 800MA DO214

1 review(s) | Add your review

Availability: In stock

Manufacturer: Littelfuse Inc.

SKU: S2S1RP

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

S2S1RP Description

Operating Temperature	-40°C ~ 110°C
Current - Off State (Max)	1 μA
Mounting Type	Surface Mount

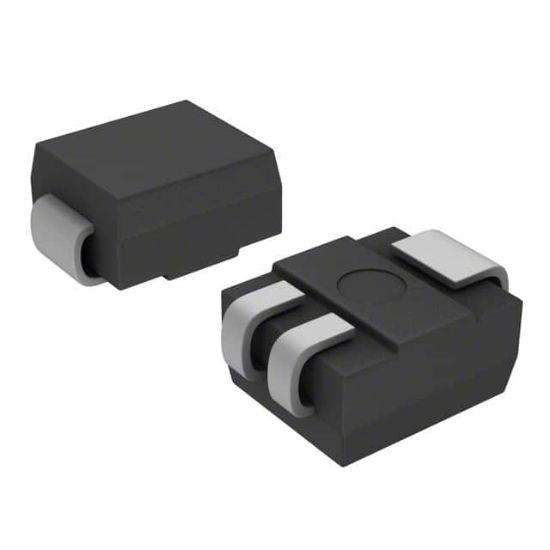

Supplier Device Package	DO-214 (Compak)
Voltage - Gate Trigger (Vgt) (Max)	800 mV
Voltage - Off State	200 V
Current - On State (It (AV)) (Max)	510 mA
Current - Gate Trigger (Igt) (Max)	12 μA
Package	Tape & Reel (TR)
Current - Non Rep. Surge 50, 60Hz (Itsm)	16A, 20A
Current - On State (It (RMS)) (Max)	800 mA
SCR Type	Sensitive Gate
Voltage - On State (Vtm) (Max)	1.7 V
Current - Hold (Ih) (Max)	5 mA
RoHS	RoHS
