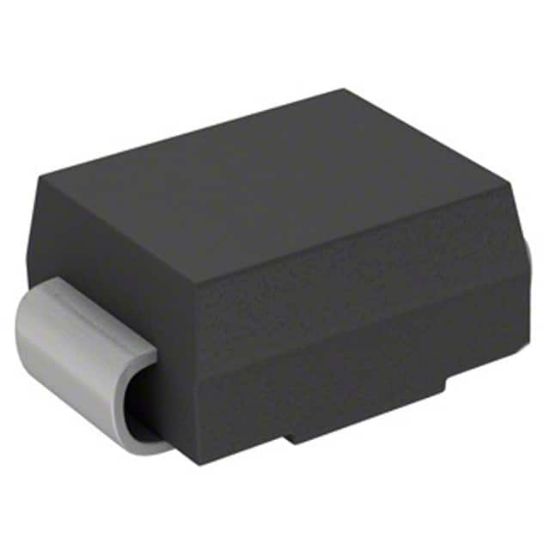

S1G-13-F

DIODE GEN PURP 400V 1A SMA

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: S1G-13-F

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

S1G-13-F Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
S1G	S1G-13-F	DIODES	SMA/DO-214AC	0	二极管Diodes 整流二极管Rectifiers 单管Single

Capacitance @ Vr, F	10pF @ 4V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	SMA
Diode Type	Standard
Operating Temperature - Junction	-65°C ~ 150°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	1.1 V @ 1 A
Current - Reverse Leakage @ Vr	5 μA @ 400 V
Reverse Recovery Time (trr)	3 μs
Voltage - DC Reverse (Vr) (Max)	400 V
Current - Average Rectified (Io)	1A
RoHS	RoHS
Speed	Standard Recovery >500ns, > 200mA (Io)
