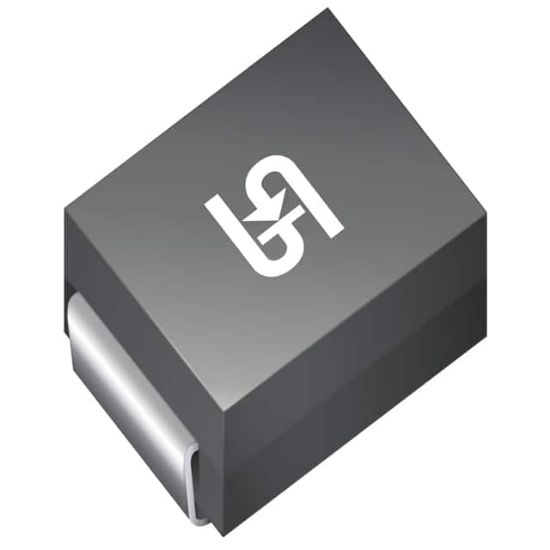

RS5M-T M6G

500NS, 5A, 1000V, FAST RECOVERY

1 review(s) | Add your review

Availability: In stock

Manufacturer: Taiwan Semiconductor Corporation

SKU: RS5M-T M6G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

RS5M-T M6G Description

Capacitance @ Vr, F	31pF @ 4V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	DO-214AB (SMC)
Diode Type	Standard
Operating Temperature - Junction	-55°C ~ 150°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	1.3 V @ 5 A
Current - Reverse Leakage @ Vr	10 μA @ 1000 V
Reverse Recovery Time (trr)	500 ns
Voltage - DC Reverse (Vr) (Max)	1000 V
Current - Average Rectified (Io)	5A (DC)
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
