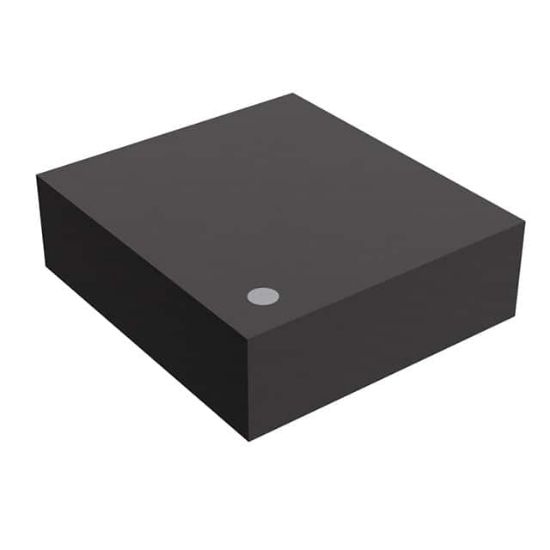

RP401K501B-TR

1A PWM/VFM STEP-UP DCDC CONVERTE

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nisshinbo Micro Devices Inc.

SKU: RP401K501B-TR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

RP401K501B-TR Description

Operating Temperature	-40°C ~ 85°C (TA)
Frequency - Switching	1.2MHz
Voltage - Output (Min/Fixed)	5V
Mounting Type	Surface Mount
Current - Output	500mA
Supplier Device Package	DFN(PLP)1820-6
Synchronous Rectifier	No
Function	Step-Up
Output Configuration	Positive
Voltage - Input (Min)	0.6V
Package	Tape & Reel (TR)
Topology	Boost
Voltage - Input (Max)	5.5V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
