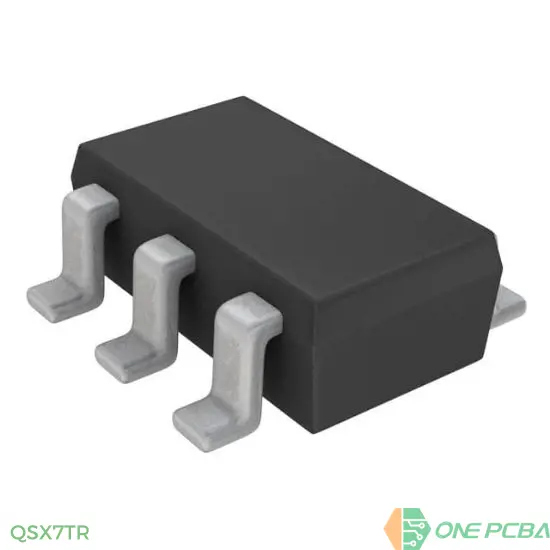

QSX7TR

TRANS 2NPN 12V 1.5A 6TSMT

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rohm Semiconductor

SKU: QSX7TR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

QSX7TR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
X07	QSX7TR		TSMT6	0	General purpose amplification (12V, 1.5A)

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	200mV @ 25mA, 500mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	1.5A
Supplier Device Package	TSMT6 (SC-95)
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	12V
Power - Max	500mW
Package	Tape & Reel (TR)
DC Current Gain (hFE) (Min) @ Ic, Vce	270 @ 200mA, 2V
Frequency - Transition	400MHz
RoHS	RoHS
Transistor Type	2 NPN (Dual)
