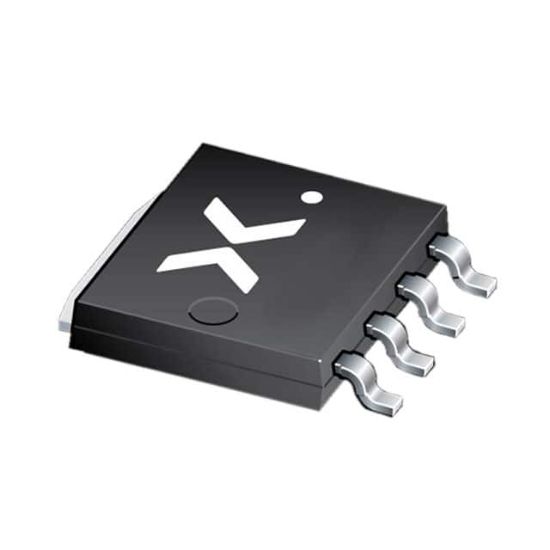

PSMNR51-25YLHX

MOSFET N-CH 25V 380A LFPAK56

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: PSMNR51-25YLHX

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PSMNR51-25YLHX Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	380A (Ta)
Rds On (Max) @ Id, Vgs	0.57mOhm @ 25A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	333W (Ta)
Drain to Source Voltage (Vdss)	25 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	2.2V @ 2mA
Gate Charge (Qg) (Max) @ Vgs	113 nC @ 10 V
Supplier Device Package	LFPAK56; Power-SO8
Input Capacitance (Ciss) (Max) @ Vds	6990 pF @ 12 V
RoHS	RoHS
