PSMN1R1-40BS,118

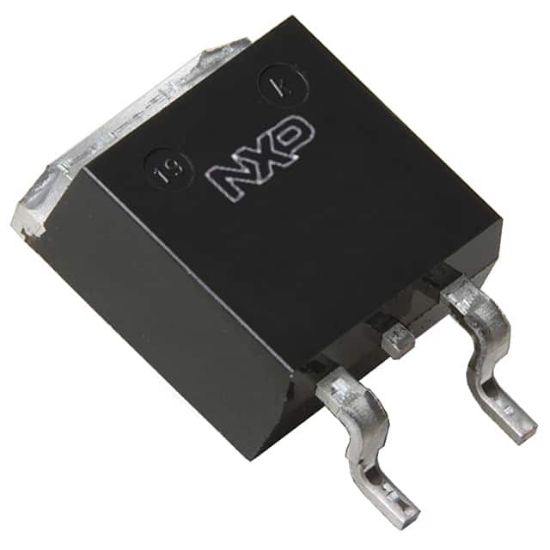

MOSFET N-CH 40V 120A D2PAK

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: PSMN1R1-40BS,118

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PSMN1R1-40BS,118 Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	120A (Tc)
Rds On (Max) @ Id, Vgs	1.3mOhm @ 25A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	306W (Tc)
Drain to Source Voltage (Vdss)	40 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	136 nC @ 10 V
Supplier Device Package	D2PAK
Input Capacitance (Ciss) (Max) @ Vds	9710 pF @ 20 V
RoHS	RoHS
