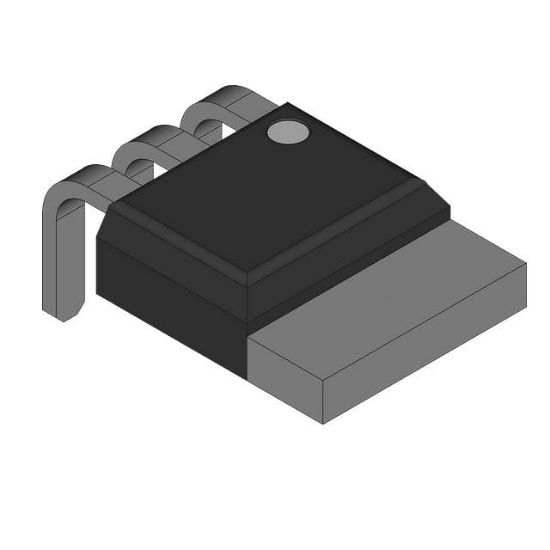

PSMN018-100ESFQ-6328979

NEXPERIA PSMN018 - NEXTPOWER 100

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: PSMN018-100ESFQ-6328979

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PSMN018-100ESFQ-6328979 Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	53A (Ta)
Rds On (Max) @ Id, Vgs	18mOhm @ 15A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	7V, 10V
Package	Bulk
Power Dissipation (Max)	111W (Ta)
Drain to Source Voltage (Vdss)	100 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	21.4 nC @ 10 V
Supplier Device Package	I2PAK
Input Capacitance (Ciss) (Max) @ Vds	1482 pF @ 50 V
RoHS	RoHS
