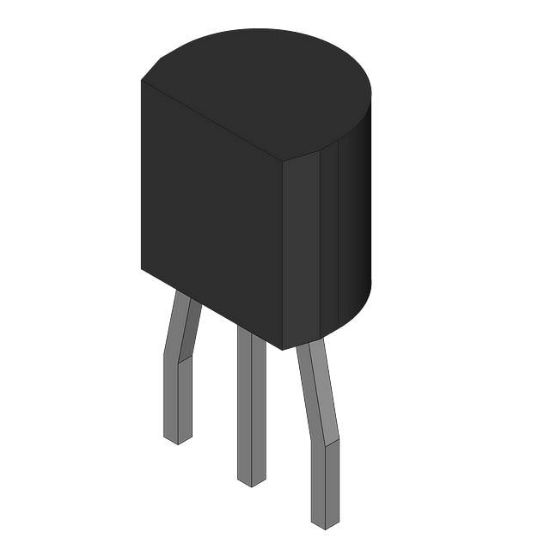

PN3563-6287334

RF SMALL SIGNAL TRANSISTOR

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: PN3563-6287334

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PN3563-6287334 Description

Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	50mA
Supplier Device Package	TO-92-3
Voltage - Collector Emitter Breakdown (Max)	15V
Power - Max	350mW
Package	Bulk
Noise Figure (dB Typ @ f)	-
Gain	14dB ~ 26dB
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 8mA, 10V
Frequency - Transition	1.5GHz
RoHS	RoHS
Transistor Type	NPN
