PDS560-13

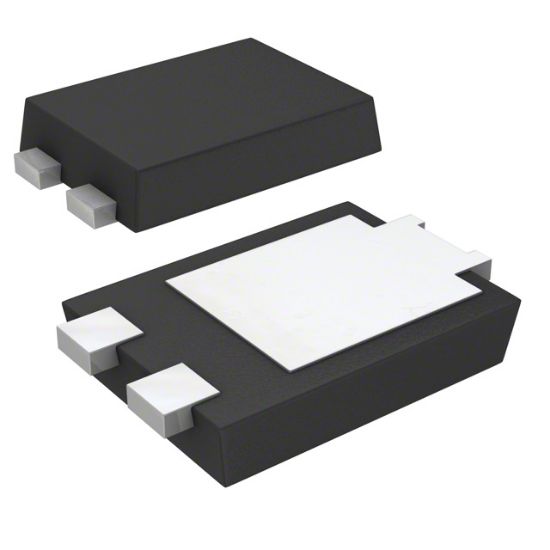

DIODE SCHOTTKY 60V 5A POWERDI5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: PDS560-13

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PDS560-13 Description

Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Supplier Device Package	PowerDI? 5
Diode Type	Schottky
Operating Temperature - Junction	-65°C ~ 150°C
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Voltage - Forward (Vf) (Max) @ If	670 mV @ 5 A
Current - Reverse Leakage @ Vr	150 μA @ 60 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	60 V
Current - Average Rectified (Io)	5A
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
