PBSS5240ZF-6300482

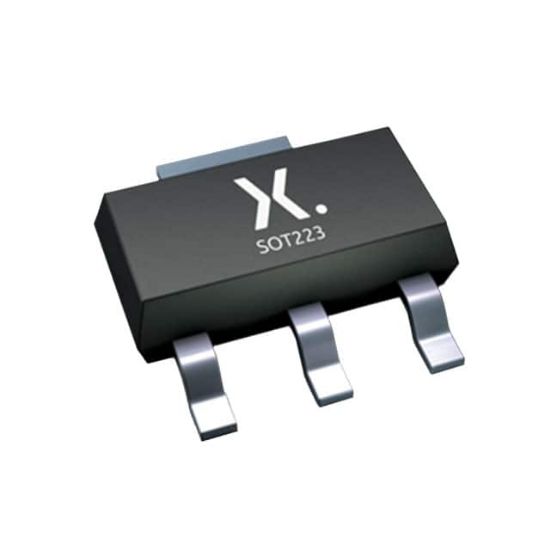

TRANS PNP 40V 2A SOT223

1 review(s) | Add your review

Availability: In stock

Manufacturer: Nexperia USA Inc.

SKU: PBSS5240ZF-6300482

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

PBSS5240ZF-6300482 Description

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	650mV @ 200mA, 2A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	2 A
Supplier Device Package	SOT-223
Current - Collector Cutoff (Max)	100nA
Voltage - Collector Emitter Breakdown (Max)	40 V
Power - Max	650 mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	300 @ 1mA, 5V
Frequency - Transition	150MHz
RoHS	RoHS
Transistor Type	PNP
