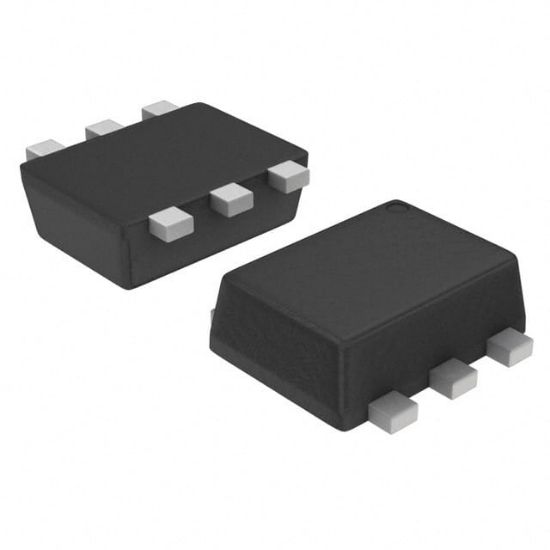

NTZD3152PT1G

MOSFET 2P-CH 20V 430MA SOT563

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTZD3152PT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTZD3152PT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TUx	NTZD3152PT1G		SOT-563	6	Small Signal MOSFET -20 V, -430 mA, Dual P-Channel with ESD Protection

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Standard
Mounting Type	Surface Mount
Supplier Device Package	SOT-563
Current - Continuous Drain (Id) @ 25°C	430mA
Rds On (Max) @ Id, Vgs	900mOhm @ 430mA, 4.5V
FET Type	2 P-Channel (Dual)
Power - Max	250mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	20V
Vgs(th) (Max) @ Id	1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	2.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	175pF @ 16V
RoHS	RoHS
