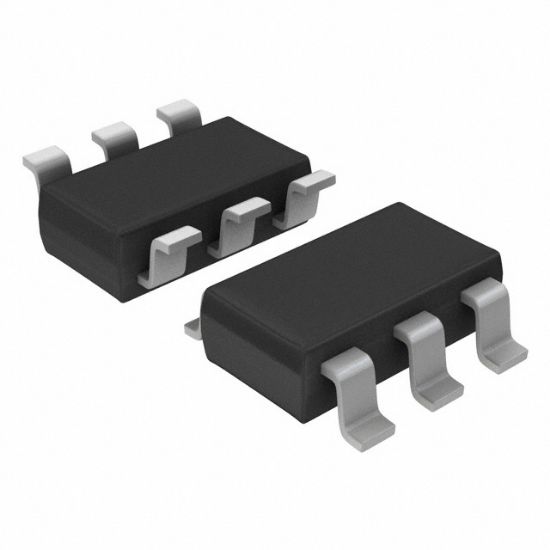

NTGS3446T1

MOSFET N-CH 20V 2.5A 6TSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NTGS3446T1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NTGS3446T1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
446x	NTGS3446T1		SOT23-6	0	Power MOSFET 20V, 5.1 A, Single N-Channel
446	NTGS3446T1	ON	SOT-163/TSOP-6/SC-74	0	场效应管FET MOSFET-N沟道MOSFET N-Channel

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2.5A (Ta)
Rds On (Max) @ Id, Vgs	45mOhm @ 5.1A, 4.5V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT)
Power Dissipation (Max)	500mW (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±12V
Vgs(th) (Max) @ Id	1.2V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	15 nC @ 4.5 V
Supplier Device Package	6-TSOP
Input Capacitance (Ciss) (Max) @ Vds	750 pF @ 10 V
RoHS	RoHS
