NLSX3013FCT1G

IC TRNSLTR BIDIR 20FLIPCHIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NLSX3013FCT1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NLSX3013FCT1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
3013F	NLSX3013FCT1G		CSP2x2.5-20	0	8-Bit 100 Mbps Configurable Dual-Supply Level Translator

Operating Temperature	-40°C ~ 85°C (TA)
Voltage - VCCA	0.9 V ~ 4.5 V
Data Rate	100Mbps
Output Signal	-
Input Signal	-
Number of Circuits	1
Channels per Circuit	8
Package	Tape & Reel (TR),Bulk
Channel Type	Bidirectional
Voltage - VCCB	1.3 V ~ 4.5 V
Mounting Type	Surface Mount

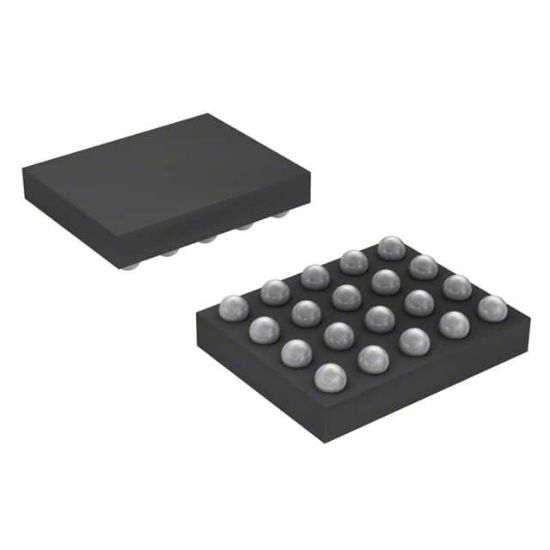

Supplier Device Package	20-FlipChip (2.54x2.03)
Translator Type	Voltage Level
Features	Auto-Direction Sensing
RoHS	RoHS
Output Type	Tri-State, Non-Inverted
