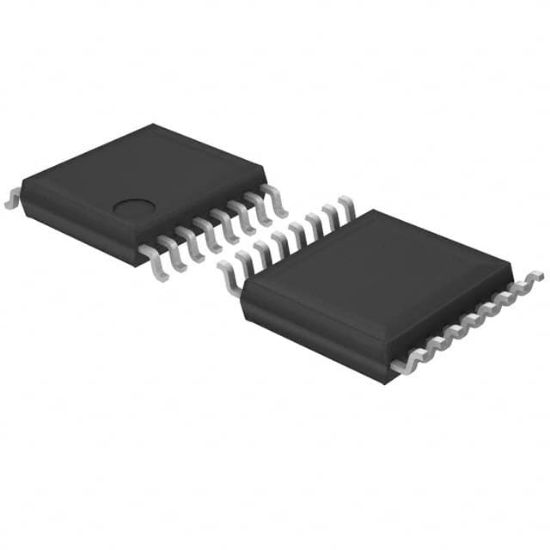

NLAS4052QSR

IC MUX/DEMUX DUAL 4X1 16QSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NLAS4052QSR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NLAS4052QSR Description

Operating Temperature	-55°C ~ 125°C (TA)
Channel Capacitance (CS(off), CD(off))	10pF, 10pF
On-State Resistance (Max)	26Ohm
Mounting Type	Surface Mount
Supplier Device Package	16-QSOP
Switch Circuit	SP4T
Voltage - Supply, Dual (V±)	±3V
Number of Circuits	2
Package	Tape & Reel (TR),Cut Tape (CT),Bulk
Charge Injection	12pC
Switch Time (Ton, Toff) (Max)	23ns, 23ns
Voltage - Supply, Single (V+)	2.5V ~ 5V
Crosstalk	-
Multiplexer/Demultiplexer Circuit	4:1
Channel-to-Channel Matching (ΔRon)	10Ohm
-3db Bandwidth	140MHz
RoHS	RoHS
Current - Leakage (IS(off)) (Max)	100nA
