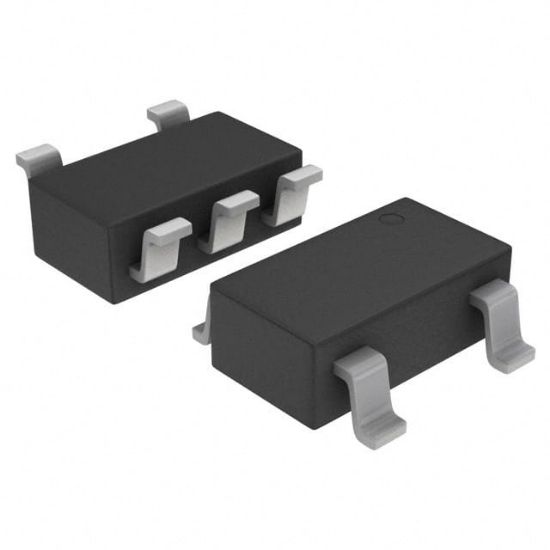

NCP584HSN15T1G

IC REG LINEAR 1.5V 200MA SOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NCP584HSN15T1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NCP584HSN15T1G Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
115xx	NCP584HSN15T1G		SOT23-5	5	1.5V Tri-Mode 200 mA CMOS LDO Regulator with Enable
115	NCP584HSN15T1G	ON	SOT23?5	5	Linear Voltage Regulator, LDO, Tri-Mode, Low Iq, 200 mA

Operating Temperature	-40°C ~ 85°C
Voltage Dropout (Max)	0.5V @ 200mA
Voltage - Output (Min/Fixed)	1.5V
Mounting Type	Surface Mount
Current - Output	200mA
PSRR	-
Current - Supply (Max)	-
Protection Features	Over Current
Output Configuration	Positive
Package	Tape & Reel (TR),Bulk
Control Features	Enable
Voltage - Input (Max)	6V
Supplier Device Package	SOT-23-5
Number of Regulators	1
Current - Quiescent (Iq)	70 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
