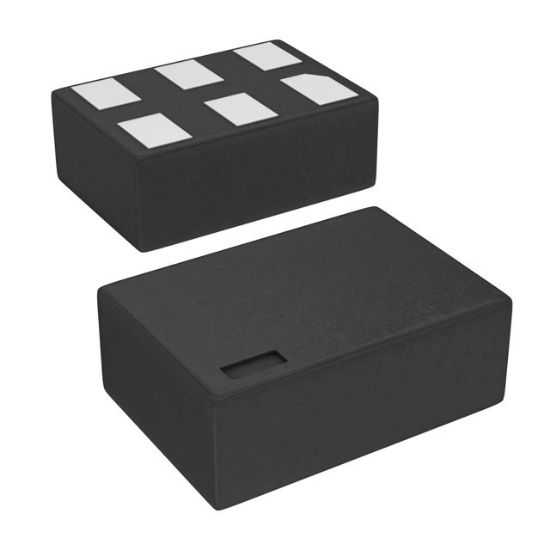

NC7SP38L6X

IC GATE NAND OD 1CH 2IN 6MICROPK

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: NC7SP38L6X

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

NC7SP38L6X Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
K7	NC7SP38L6X	Fairchild	MicroPak-6	6	TinyLogic ULP 2输入NAND门（漏极开路输出）

Voltage - Supply	0.9V ~ 3.6V
Logic Type	NAND Gate
Max Propagation Delay @ V, Max CL	10ns @ 3.3V, 30pF
Mounting Type	Surface Mount
Supplier Device Package	6-MicroPak
Logic Level - High	1.6V ~ 2.1V
Number of Circuits	1
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Quiescent (Max)	900 nA
Logic Level - Low	0.7V ~ 0.9V
Number of Inputs	2
Operating Temperature	-40°C ~ 85°C
Features	Open Drain
RoHS	RoHS
Current - Output High, Low	-, 2.6mA
