N74F86N,602

IC GATE XOR 4CH 2-INP 14DIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: NXP USA Inc.

SKU: N74F86N,602

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

N74F86N,602 Description

Voltage - Supply	4.5V ~ 5.5V
Logic Type	XOR (Exclusive OR)
Max Propagation Delay @ V, Max CL	7ns @ 5V, 50pF
Mounting Type	Through Hole

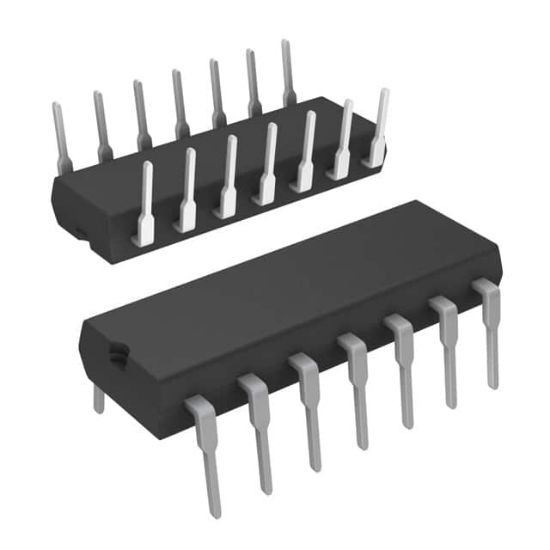

Supplier Device Package	14-DIP
Logic Level - High	2V
Number of Circuits	4
Package	Tube
Current - Quiescent (Max)	-
Logic Level - Low	0.8V
Number of Inputs	2
Operating Temperature	0°C ~ 70°C
Features	-
RoHS	RoHS
Current - Output High, Low	1mA, 20mA
