N74F543DB,118

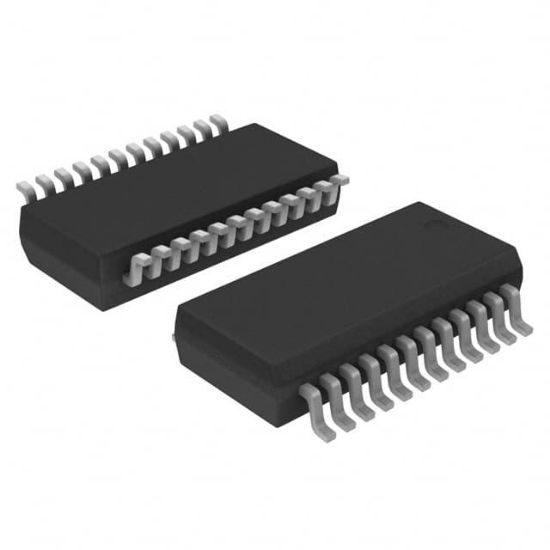

IC TXRX NON-INVERT 5.5V 24SSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: NXP USA Inc.

SKU: N74F543DB,118

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

N74F543DB,118 Description

Output Type	3-State
Operating Temperature	0°C ~ 70°C (TA)
Current - Output High, Low	3mA, 24mA; 15mA, 64mA
RoHS	RoHS
Logic Type	Transceiver, Non-Inverting
Voltage - Supply	4.5V ~ 5.5V
Number of Elements	1
Supplier Device Package	24-SSOP
Package	Tape & Reel (TR)
Input Type	-
Number of Bits per Element	8
Mounting Type	Surface Mount
