MUN5115T1

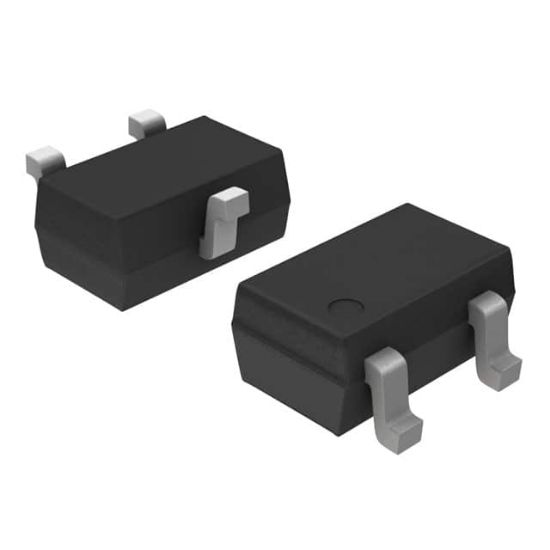

TRANS PREBIAS PNP 202MW SC70-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MUN5115T1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MUN5115T1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
6E	MUN5115T1	ON	SOT-323/SC-70	0	三极管Bipolar Junction Transistors(BJT) 带阻尼PNPPNP Bipolar Digital Transistor (BRT)

Vce Saturation (Max) @ Ib, Ic	250mV @ 1mA, 10mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	100 mA
Supplier Device Package	SC-70-3 (SOT323)
Current - Collector Cutoff (Max)	500nA
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	202 mW
Package	Tape & Reel (TR),Bulk
Resistor - Emitter Base (R2)	-
Resistor - Base (R1)	10 kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	160 @ 5mA, 10V
Frequency - Transition	-
RoHS	RoHS
Transistor Type	PNP - Pre-Biased
