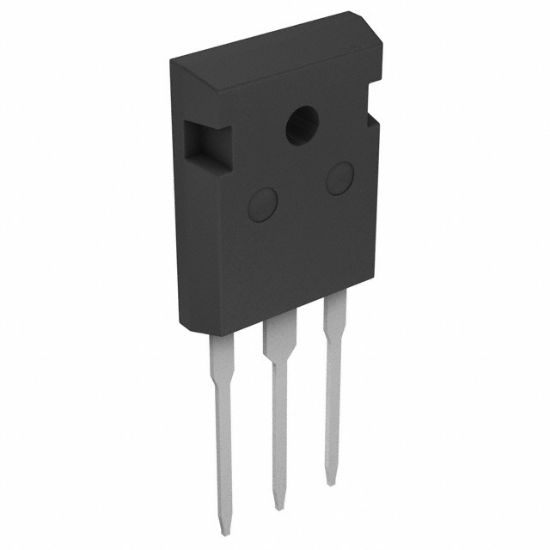

MSC040SMA120B

SICFET N-CH 1200V 66A TO247-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Microchip Technology

SKU: MSC040SMA120B

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MSC040SMA120B Description

Operating Temperature	-55°C ~ 175°C (TJ)
FET Feature	-
Mounting Type	Through Hole
Technology	SiCFET (Silicon Carbide)
Current - Continuous Drain (Id) @ 25°C	66A (Tc)
Rds On (Max) @ Id, Vgs	50mOhm @ 40A, 20V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	20V
Package	Tube
Power Dissipation (Max)	323W (Tc)
Drain to Source Voltage (Vdss)	1200 V
Vgs (Max)	+23V, -10V
Vgs(th) (Max) @ Id	2.7V @ 2mA
Gate Charge (Qg) (Max) @ Vgs	137 nC @ 20 V
Supplier Device Package	TO-247-3
Input Capacitance (Ciss) (Max) @ Vds	1990 pF @ 1000 V
RoHS	RoHS
