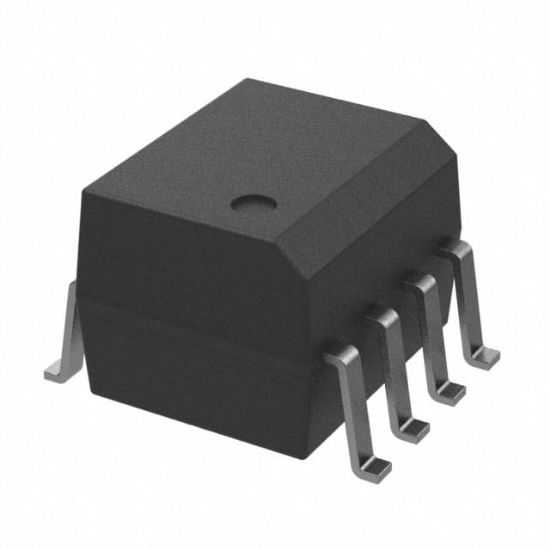

MOC223R1M-7879346

DARLINGTON OUTPUT OPTOCOUPLER

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: MOC223R1M-7879346

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MOC223R1M-7879346 Description

Operating Temperature	-40°C ~ 100°C
Rise / Fall Time (Typ)	1μs, 2μs
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Current Transfer Ratio (Max)	-
Vce Saturation (Max)	1V
Number of Channels	1
Voltage - Output (Max)	30V
Turn On / Turn Off Time (Typ)	3.5μs, 95μs
Package	Bulk
Current Transfer Ratio (Min)	500% @ 1mA
Voltage - Forward (Vf) (Typ)	1.08V
Current - Output / Channel	150mA
Input Type	DC
Current - DC Forward (If) (Max)	60 mA
Voltage - Isolation	2500Vrms
RoHS	RoHS
Output Type	Darlington with Base
