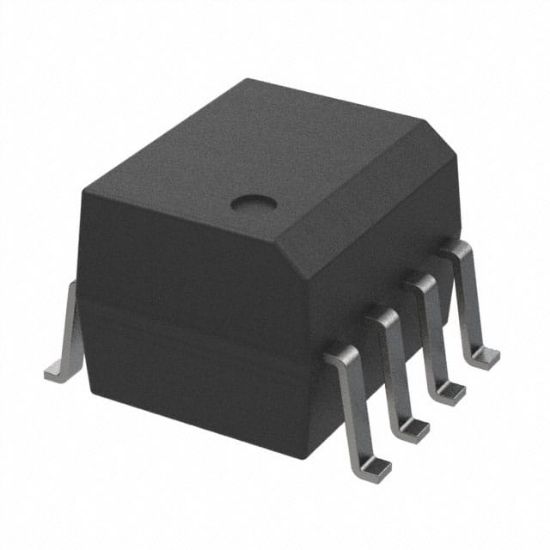

MOC206R1M-7885501

OPTOISO 2.5KV TRANS W/BASE 8SOIC

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MOC206R1M-7885501

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MOC206R1M-7885501 Description

Operating Temperature	-40°C ~ 100°C
Rise / Fall Time (Typ)	3.2μs, 4.7μs
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Current Transfer Ratio (Max)	125% @ 10mA
Vce Saturation (Max)	400mV
Number of Channels	1
Voltage - Output (Max)	30V
Turn On / Turn Off Time (Typ)	7.5μs, 5.7μs
Package	Tape & Reel (TR)
Current Transfer Ratio (Min)	63% @ 10mA
Voltage - Forward (Vf) (Typ)	1.15V
Current - Output / Channel	150mA
Input Type	DC
Current - DC Forward (If) (Max)	60 mA
Voltage - Isolation	2500Vrms
RoHS	RoHS
Output Type	Transistor with Base
