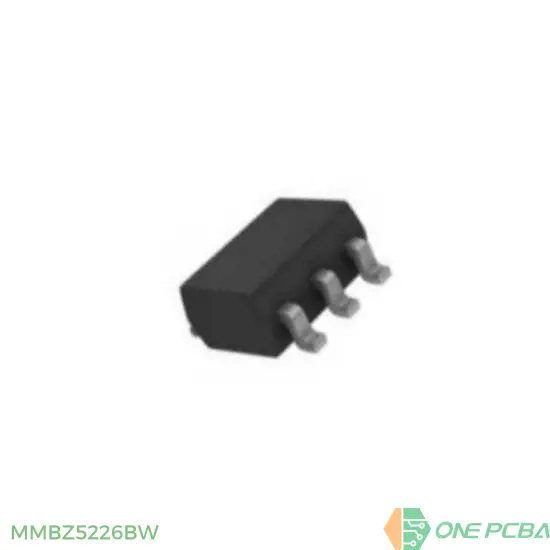

MMBZ5226BW

DIODE ZENER 3.3V 200MW SOT-323

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rectron USA

SKU: MMBZ5226BW

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MMBZ5226BW Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
KG1	MMBZ5226BW	Di	SOT-323	3	3.3V±5%, Zzt=28, 200mW
D1	MMBZ5226BW	Pjt	SOT-323	3	3.3V±5%, Zzt=28, 200mW

Impedance (Max) (Zzt)	28 Ohms
Power - Max	200 mW
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA
Operating Temperature	-
RoHS	RoHS
Current - Reverse Leakage @ Vr	25 μA @ 1 V
Mounting Type	Surface Mount
Supplier Device Package	SOT-323
Package	Tape & Reel (TR)
Voltage - Zener (Nom) (Vz)	3.3 V
Tolerance	±5%
