ML610Q421P-NNNTB0ARL

IC MCU 8BIT 32KB FLASH 120TQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rohm Semiconductor

SKU: ML610Q421P-NNNTB0ARL

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ML610Q421P-NNNTB0ARL Description

Number of I/O	22
Core Processor	nX-U8/100
EEPROM Size	-
Data Converters	A/D 2x12b, 2x24b
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)

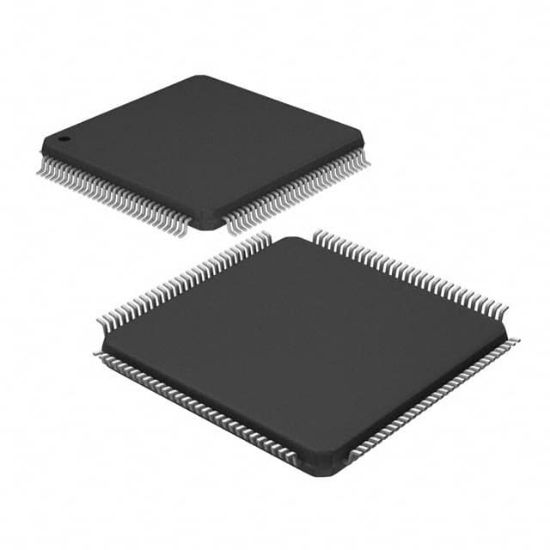

Supplier Device Package	120-TQFP (14x14)
Core Size	8-Bit
Program Memory Size	32KB (16K x 16)
Package	Tray
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	1.1V ~ 3.6V
Program Memory Type	FLASH
Peripherals	LCD, Melody Driver, POR, PWM, WDT
Connectivity	I2C, SSP, UART/USART
RoHS	RoHS
Speed	4.2MHz
RAM Size	2K x 8
