MCL103B-6150922

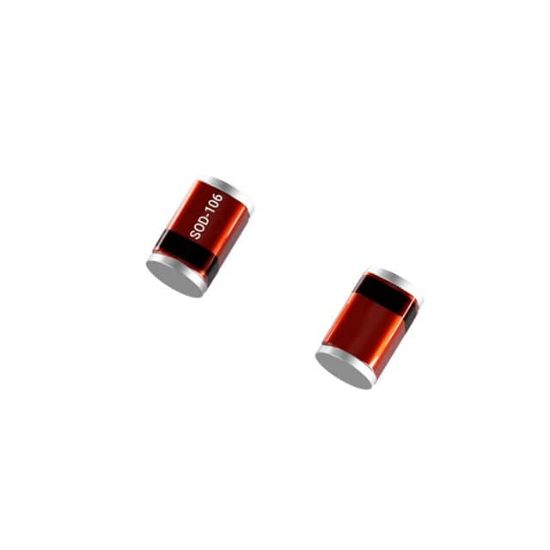

SCHOTTKY SOD-106 30V 0.2A

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diotec Semiconductor

SKU: MCL103B-6150922

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MCL103B-6150922 Description

Capacitance @ Vr, F	50pF @ 0V, 1MHz
Mounting Type	Surface Mount
Supplier Device Package	MicroMelf
Diode Type	Schottky
Operating Temperature - Junction	-55°C ~ 125°C
Package	Tape & Reel (TR)
Voltage - Forward (Vf) (Max) @ If	600 mV @ 200 mA
Current - Reverse Leakage @ Vr	5 μA @ 20 V
Reverse Recovery Time (trr)	10 ns
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io)	350mA
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
