MBRF2045CTG

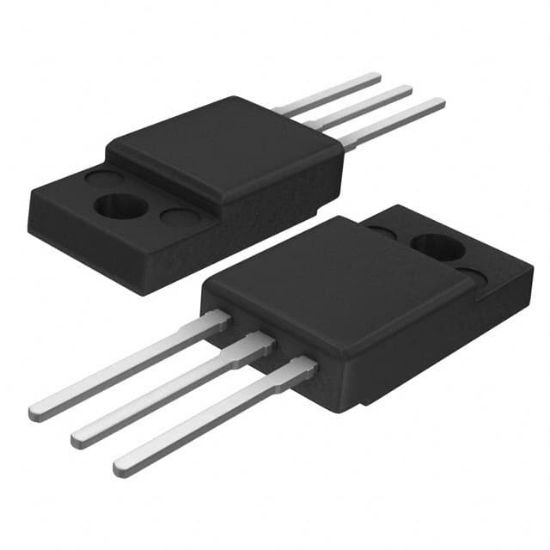

DIODE ARRAY SCHOTTKY 45V TO220FP

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: MBRF2045CTG

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

MBRF2045CTG Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
B2045G	MBRF2045CTG		TO-220FP-3	0	45 V, 20 A Schottky Rectifier

Current - Average Rectified (Io) (per Diode)	10A
Mounting Type	Through Hole
Supplier Device Package	TO-220FP
Diode Type	Schottky
Operating Temperature - Junction	-65°C ~ 175°C
Package	Tube
Voltage - Forward (Vf) (Max) @ If	570 mV @ 10 A
Current - Reverse Leakage @ Vr	100 μA @ 45 V
Reverse Recovery Time (trr)	-
Voltage - DC Reverse (Vr) (Max)	45 V
Diode Configuration	1 Pair Common Cathode
RoHS	RoHS
Speed	Fast Recovery =< 500ns, > 200mA (Io)
