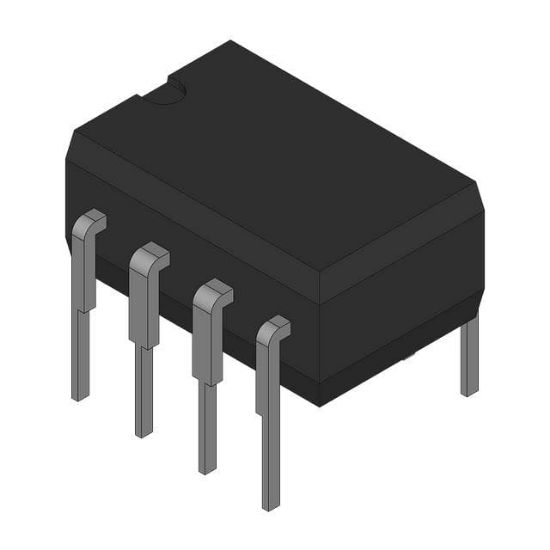

LT1054IPG4

IC REG CHARG PUMP INV 100MA 8DIP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: LT1054IPG4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LT1054IPG4 Description

Operating Temperature	-40°C ~ 85°C (TA)
Frequency - Switching	25kHz
Voltage - Output (Min/Fixed)	3.5V (-Vin, 2Vin)
Mounting Type	Through Hole
Current - Output	100mA
Supplier Device Package	8-PDIP
Synchronous Rectifier	No
Function	Ratiometric, Step-Up
Output Configuration	Positive or Negative
Voltage - Input (Min)	3.5V
Package	Tube
Topology	Charge Pump
Voltage - Input (Max)	15V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	26.4V
Output Type	Adjustable (Fixed)
