LPC11U14FBD48/20EL

IC MCU 32BIT 32KB FLASH 48LQFP

1 review(s) | Add your review

Availability: In stock

Manufacturer: NXP USA Inc.

SKU: LPC11U14FBD48/20EL

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LPC11U14FBD48/20EL Description

Number of I/O	40
Core Processor	ARM? Cortex?-M0
EEPROM Size	-
Data Converters	A/D 8x10b SAR
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C (TA)

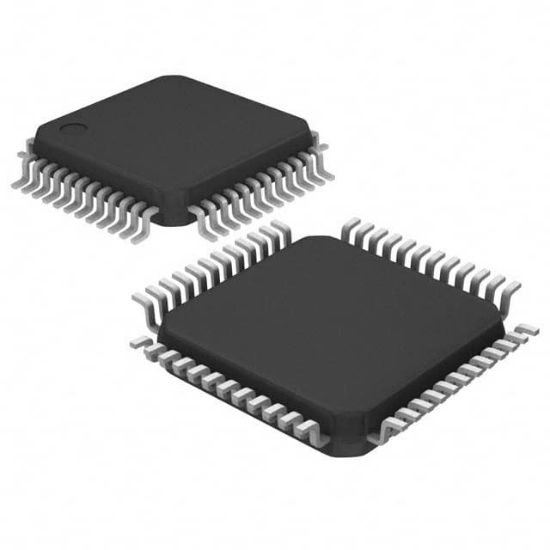

Supplier Device Package	48-LQFP (7x7)
Core Size	32-Bit
Program Memory Size	32KB (32K x 8)
Package	Tray
Oscillator Type	Internal
Voltage - Supply (Vcc/Vdd)	1.8V ~ 3.6V
Program Memory Type	FLASH
Peripherals	Brown-out Detect/Reset, POR, WDT
Connectivity	I2C, Microwire, SmartCard, SPI, SSP, UART/USART, USB
RoHS	RoHS
Speed	50MHz
RAM Size	6K x 8
