LMK03002ISQX/NOPB-7167047

IC CLOCK COND VCO/PLL 48WQFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: LMK03002ISQX/NOPB-7167047

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LMK03002ISQX/NOPB-7167047 Description

Voltage - Supply	3.15V ~ 3.45V
Input	LVCMOS, LVDS, LVPECL
Mounting Type	Surface Mount
Operating Temperature	-40°C ~ 85°C

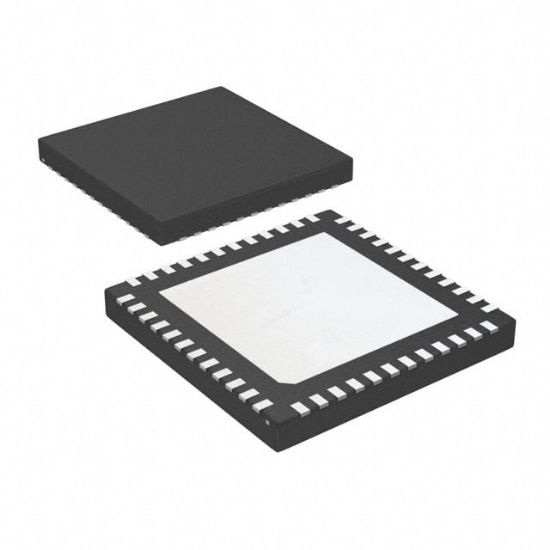

Supplier Device Package	48-WQFN (7x7)
Number of Circuits	1
Output	LVPECL
Package	Tape & Reel (TR)
Ratio - Input:Output	1:4
Differential - Input:Output	Yes/Yes
Type	Clock Conditioner
Divider/Multiplier	Yes/No
Frequency - Max	1.724GHz
PLL	Yes
RoHS	RoHS
