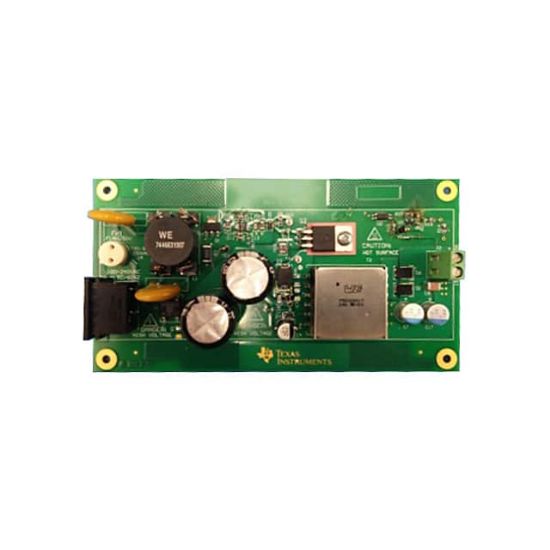

LM5023-2NBEVM

EVAL BOARD FRO LM5023

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: LM5023-2NBEVM

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LM5023-2NBEVM Description

Power - Output	65 W
Utilized IC / Part	LM5023
Frequency - Switching	-
Outputs and Type	1, Isolated
Board Type	Fully Populated
Current - Output	3.43A
Supplied Contents	Board(s)
Main Purpose	AC/DC, Primary Side
Voltage - Input	-
Package	Box
Regulator Topology	Flyback
Voltage - Output	19V
RoHS	RoHS
