LM5005MH-7761538

SWITCHING REG, CURRENT-MODE, 4.2

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: LM5005MH-7761538

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LM5005MH-7761538 Description

Operating Temperature	-40°C ~ 125°C (TJ)
Frequency - Switching	50kHz ~ 500kHz
Voltage - Output (Min/Fixed)	1.225V
Mounting Type	Surface Mount
Current - Output	2.5A

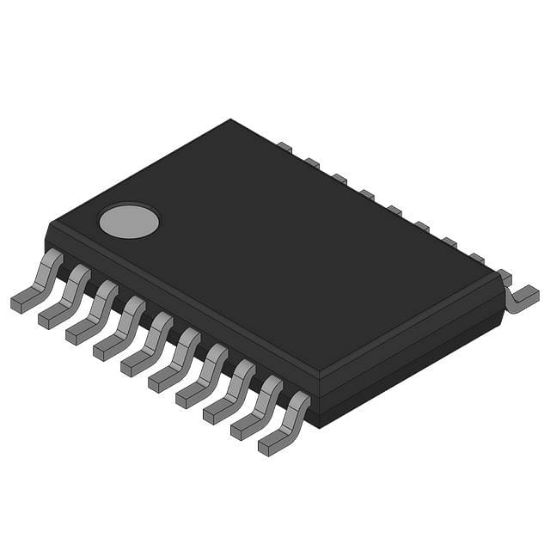

Supplier Device Package	20-HTSSOP
Synchronous Rectifier	No
Function	Step-Down
Output Configuration	Positive
Voltage - Input (Min)	7V
Package	Bulk
Topology	Buck
Voltage - Input (Max)	75V
Number of Outputs	1
RoHS	RoHS
Voltage - Output (Max)	70V
Output Type	Adjustable
