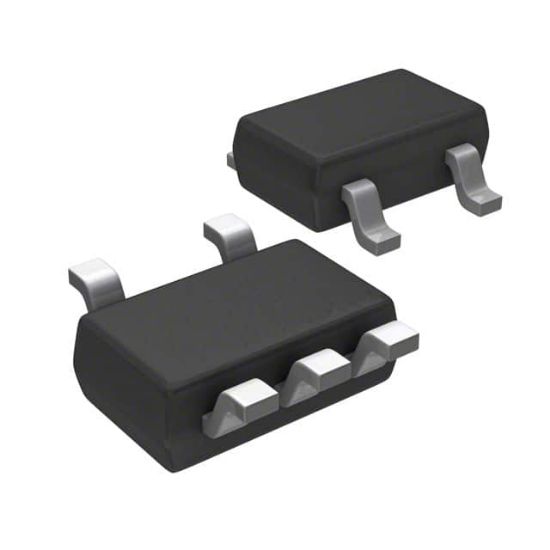

LM4040B30H5TA

IC VREF SHUNT 0.2% SC70-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: LM4040B30H5TA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

LM4040B30H5TA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
R3B	LM4040B30H5TA		SC70-5	5

Operating Temperature	-40°C ~ 125°C (TA)
Voltage - Output (Min/Fixed)	3V
Mounting Type	Surface Mount
Current - Output	15 mA
Noise - 10Hz to 10kHz	35μVrms
Reference Type	Shunt
Noise - 0.1Hz to 10Hz	-
Voltage - Output (Max)	-
Voltage - Input	-
Package	Tape & Reel (TR)
Current - Cathode	70 μA
Tolerance	±0.2%
Supplier Device Package	SC-70-5
Temperature Coefficient	100ppm/°C
RoHS	RoHS
Current - Supply	-
Output Type	Fixed
