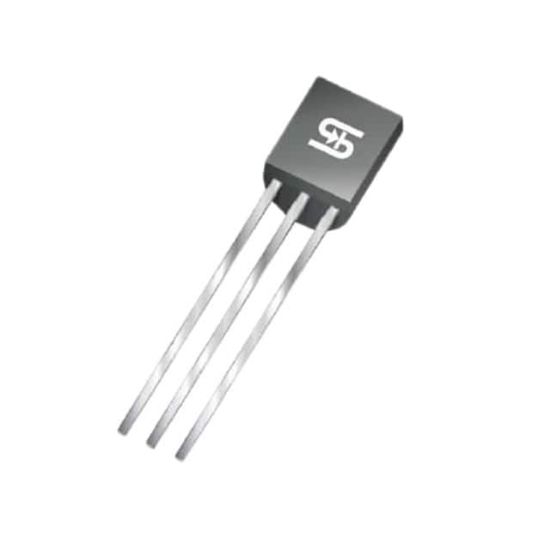

KTC3198-GR B1G

TRANSISTOR, NPN, 50V, 0.15A, 120

1 review(s) | Add your review

Availability: In stock

Manufacturer: Taiwan Semiconductor Corporation

SKU: KTC3198-GR B1G

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

KTC3198-GR B1G Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	250mV @ 10mA, 100mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	150 mA
Supplier Device Package	TO-92
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	500 mW
Package	Bulk
DC Current Gain (hFE) (Min) @ Ic, Vce	70 @ 2mA, 6V
Frequency - Transition	80MHz
RoHS	RoHS
Transistor Type	NPN
