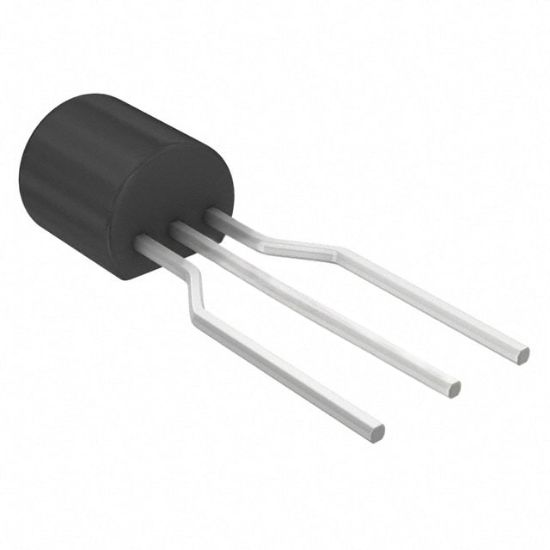

KSA1013YTA

TRANS PNP 160V 1A TO92-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: onsemi

SKU: KSA1013YTA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

KSA1013YTA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
A1013	KSA1013YTA	Fairchild	TO-92	3	PNP外延硅晶体管

Operating Temperature	150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	1.5V @ 50mA, 500mA
Mounting Type	Through Hole
Current - Collector (Ic) (Max)	1 A
Supplier Device Package	TO-92-3
Current - Collector Cutoff (Max)	1μA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	160 V
Power - Max	900 mW
Package	Cut Tape (CT),Tape & Box (TB)
DC Current Gain (hFE) (Min) @ Ic, Vce	160 @ 200mA, 5V
Frequency - Transition	50MHz
RoHS	RoHS
Transistor Type	PNP
